Usage

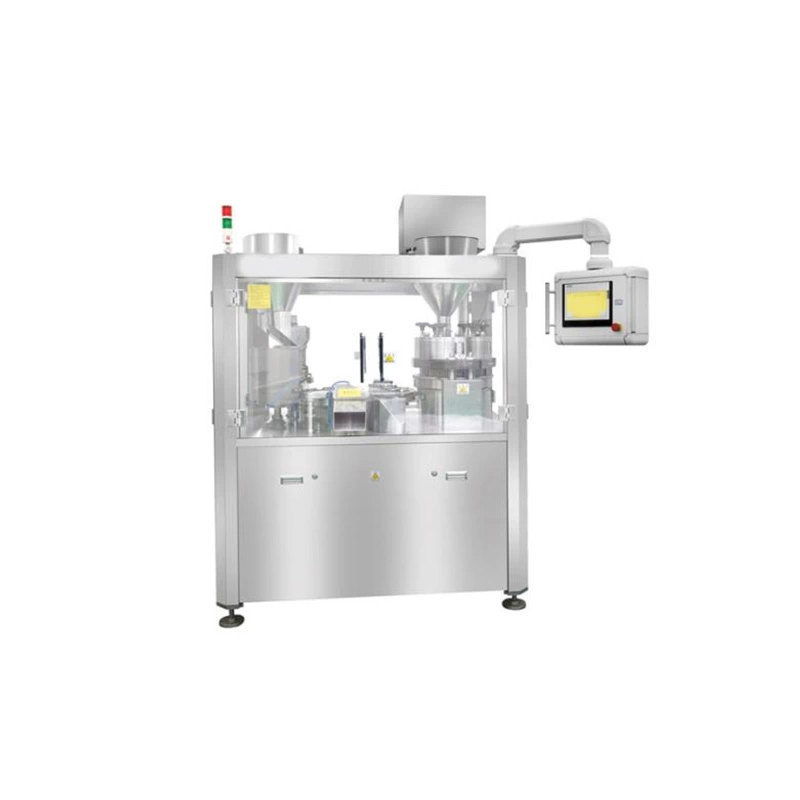

The NJP4200 automatic capsule filling machine is a kind of intermittent motion capsule filling equipment designed with multiple tamping stations and stable performance. The pharmaceutical machinery is capable of completing capsule feeding, separation, filling, removal of defective capsule, locking, and discharging, automatically.
Scientifically designed, the enclosed rotary table of the automatic capsule filling machine has twelve stations and 3 rows 32 die holes. The capsule filler conforms to GMP and FDA standard, as well as other internationally advanced standards.

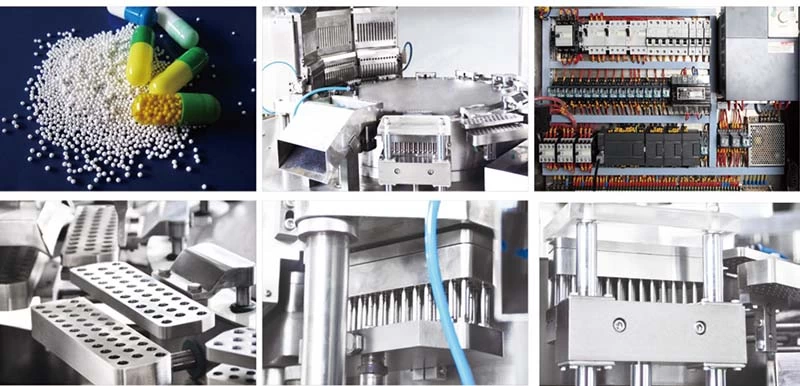

Machine Details Packaging
Machine Detail
Productivity
4200pcs/min
Size of capsule
00#-5#
Power supply
380V/50Hz, 3-phase 4-wire
Power
10.5kW
Water supply
500L/h, 0.2-0.10MPa
Dust collector capacity
230m3/h
Overall dimensions
1575×1283×(2120+250)mm
Filling percentage
3400kg
Filling percentage
≥99.8%
Dosing accuracy
≤±5%
