Usage

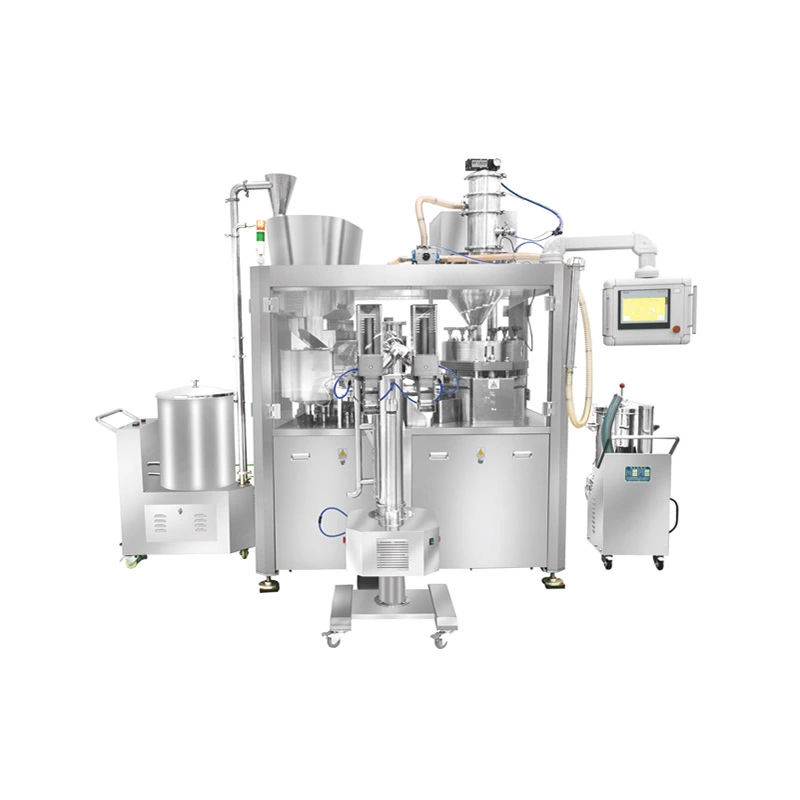

This machine is an intermittent full automatic capsule filling machine with multiple tamping stations, precise design and stable performance. It can completes the following process: feeding capsule, separating capsule, filling, rejecting defective capsule, closing capsule, discharging finished capsule automatically. It adopt closed rotary table with twelve station. There are 54 holes in four rows crossing on the module. Function of machine reach international advanced standard, which also meet the requirement of “GMP” and FDA standard. It’s absolutely the most ideal machine for producing capsule products.
Features
1）Output : 450000 capsules /hour
2) Change speed by transducer ,PLC control (C type)
3) Easy to operate and install
4) Function for filling powder,pellet,granule and pill into capsule.
5) Automatic detections and diagnosis of lack of material, capsule and mechanical trouble,make alarm and stop automatically.
6) Displaying in-time speed and accumulative output.
7) Available for electronic signature and recording, and Industrial recording and Industrial Ethernet (for optional)
Machine Details Packaging
Machine Detail
Productivity
7500 Pcs/min
Number of hole
54 holes
Size of Capsule
00~5#
Filling Percentage
≥99.8%
Dosing Precision
≤±3
Power supply
380V 50HZ
Power
12.5kw
Water supply
500L/H 0.1~0.2Mpa
Dust collector
250 m3 /H
Compressed air
0.2 m3/min 4~6kg
Noisy
≤70 db
