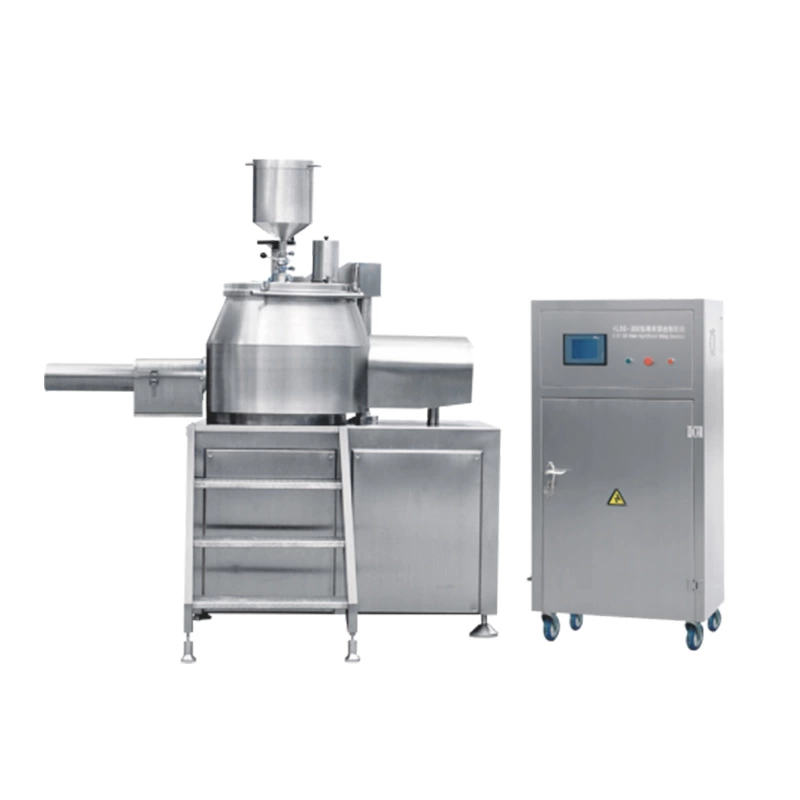

Reasonable factory Price Mixing Granulator Wet Type Granulation Machine HLSG-200/600 High Shear Mixer Granulator

Usage

This machine can mix powder or paste into granular materials with solid particles, uniform particle size, higher efficiency for tablet press. It is widely used in the mixing and granulation of medicine, food, chemical industry, metallurgy and other industries. In particular, it can be used for mixing and granulating traditional herbal extracts and traditional herbal powders, which solves a technical problem of transforming herbal medicines into medicines.

Control System

With PLC Full-computer Automatic Control produced by German Siemens. Machine setting via the man-machine interface with screen prompt function and graphic parameters. Settings can be input by touch on the HMI. Datas can be automatically recorded, so you only need to select fast in the next time.

Process of granulation

A.Adhesive uniform mixing process.

B.Particles formation.

C.The particles move in a spiral in the pot.

D.Particles meet the final requirements.

Application

Features

1.HMI prompt function, Siemens PLC control.

2.Solid and round grain, with uniform grain size and high product yield offer you with the best recovery.

3.Mixing and granulation are finished in one step, the efficiency Is increased by 4 to 5 times.

4.Automatic discharge.

5.Smaller floor space requirement, and short cleaning time.6.Save 15-25% dosages of adhesive and shorten drying time.7.Totally closed production complied with GMP.

8.It can still obtain good effect when specific weight difference between main  medicine, subsidiary medicine auxiliary materials are greater.

9.Jacket-kettle can be used to heat or cool the materials.

10.Spraying feature is designed to solve the problem of extract powder granulation.

11.Low noise < 72 db

12. Space between kettle bottom and blade is small (0.3~ 1mm) to avoid deposit in kettle bottom completely.

13. Operation of vacuum feeding system does not appear dust.

Specifications
