Usage

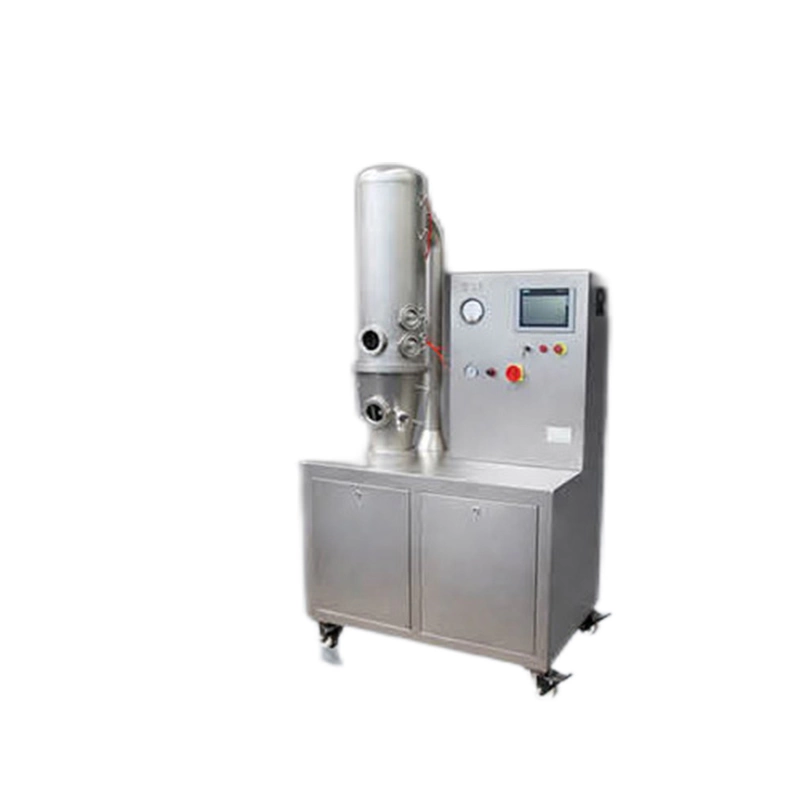

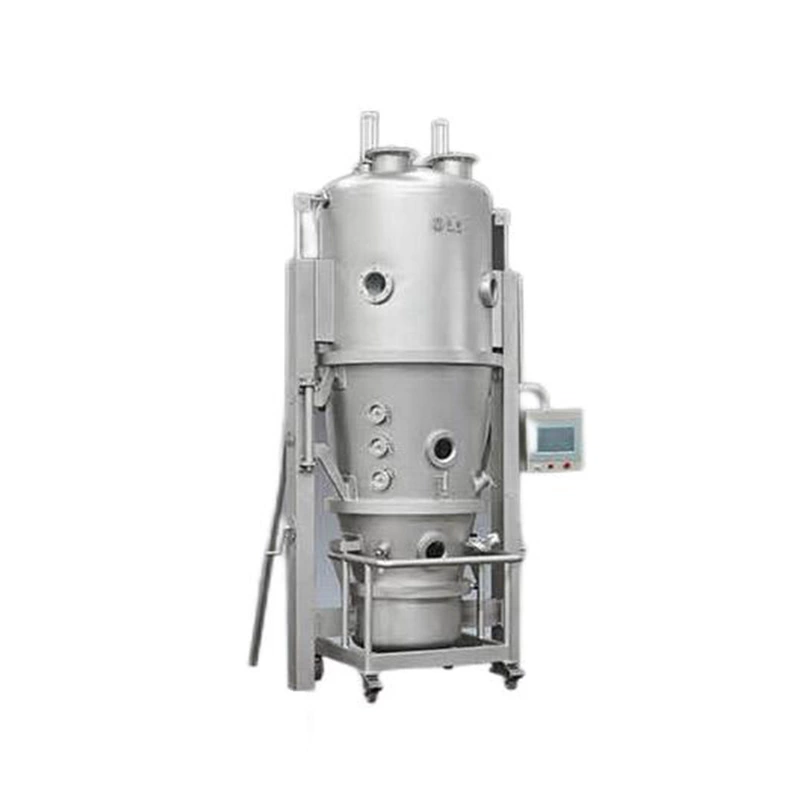

FBG Series fluid bed dryer & granulator is used in pharmaceutical solid dosage area for mixing, granulation and drying application, or drying of the wet granules processed from high shear mixer granulator. It’s the major processing equipment in solid dosage production line. The equipment is PLC automation controlled and well satisfies the current GMP and Pharmacy Code regulation.
Working Principle
The take in air is processed from the inlet AHU unit through three filters and heated, and blow up the material from its air distributor uniformly and dried by the hot air.
In case of fluidized granulation, the binder is sprayed from the peristaltic pump through the spray gun into the chamber onto the product surfaces. The product coheres together by the binder which forms the binder bridge for form the core granules and grows up and formed. The binder bridge is evaporated away by the hot air and the evenly dried granules formed.
FEATURES
1. INLET AHU
The inlet AHU consists of G4, F8, H13 filter and heater with accurate temperature control. The inlet air flow is variable controlled by the exhaust air fan motor VFD from the HMI.
2. MAIN BODY STRUCTURE
The main body structure consists of lower bowl, movable product bowl, fluidized chamber, expansion chamber/filter housing. The lower bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.
3. PRODUCT FILTER
The double structured bag filter in two pieces (in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.
4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protect environment.
5. 2Bar &10Bar POWDER EXPLOSION
The 2bar and 10 bar powder explosion proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.
6. FLUIDZED GRANULATION
In case of fluidized granulation is requested, the binder solution tank and spray sys with peristaltic pump would be designed and offered. The binder is sprayed from the peristaltic pump through the spray gun into the chamber onto the product surfaces. The product coheres together by the binder which forms the binder bridge for form the core granules and grows up and formed. The binder bridge is evaporated away by the hot air and the evenly dried granules formed.
7. UNLOADING SYS
The lifting tipping with on-line dry cone mill sys or, vacuum loading mounted on lifter with on-line dry cone mill sys is designed and offered to form the dust free material unloading from fluid bed sys to assure the dry sizing and clean production requirement according to current GMP regulation.
Room temp. ~ 90
2.2
1.8x2.0x0.8
400
2.0~5.5
500
1850
120
320
0.4
5000
Model
Material Bowl Volume
Batch size
Heating Temperature
Fan Motor Power
Steam Consumption
Compress Air Cons
Main Machine Overall Dimension
Total Weight
Model
Kg/p=0.5
℃
Kw
m³/h
m³/min
L x H x D /m
Kg
FBL10
10
1.2~3.5
Electric Heating 6kw
0.1
FBL15
15
Room temp. ~ 90
3.0
Electric Heating 10kw
0.1
2.0x2.0x0.8
FBL25
25
3.1~9.5
Room temp. ~ 90
4.0
Electric Heating 12kw
0.1
2.0x2.0x1.0
600
FBG50
50
6~18
Room temp. ~ 110
5.5
Electric Heating 18kw
0.15
1.3x2.8x1.2
FBG100
100
12.5~38
Room temp. ~ 110
11
0.15
1.5x3.3x1.25
2100
FBG150
150
20~60
Room temp. ~ 110
15
150
0.15
1.5x3.5x1.4
2300
FBG200
200
25~75
Room temp. ~ 110
15
150
0.15
2.05x3.6x1.7
2400
FBG300
300
38~110
Room temp. ~ 110
22
210
0.2
2.2x4.2x1.8
2700
FBG400
400
50~150
Room temp. ~ 110
30
270
0.2
2.5x4.6x2.0
3000
FBG500
500
65~190
Room temp. ~ 110
37
0.25
2.5x4.9x2.0
3850
FBG600
600
75~225
Room temp. ~ 110
37
380
0.35
2.8x5.2x2.4
4500
FBG600
600
100~300
Room temp. ~ 110
45
450
2.9x5.3x2.5
FBG1000
1000
125~375
Room temp. ~ 110
45
520
0.6
2.9x5.5x2.5
6000
FBG1200
1200
150~500
Room temp. ~ 110
55
640
0.6
2.9x5.9x2.5
6400
