Usage

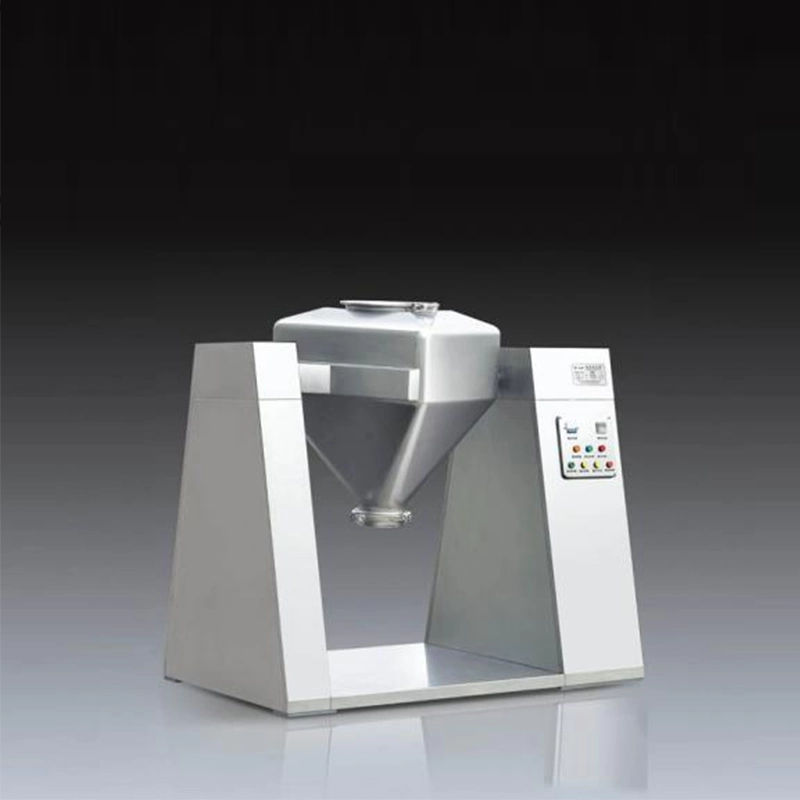

The HF series square- cone mixing machine is a novel material mixer extensively used in the pharmaceutical, chemical, metallurgical, food,light and feed industries. This machine can mix powder of granules very evenly so that the mixed materials can reach the best effect.
Working Principle
Materials are charged into a closed square- -cone mixing barrel. The symmetrical axes of hopper and the axes of rotating shaft form an included angle, while materials with different constituents are making three-dimensional space motions in the closed hopper and producing strong rolling,diffusion and contraction to achieve the best effect of mixing.
Features
1. The whole machine features noval design,compact structure, and good appearance. The evenness of mixing reaches 99 % ,and the volume charge coefficient reaches 0.8.
2. Low rotating height='auto' rea, smooth running, reliable performance and easy operation.
3. Highly polished inner and outer surfaces of the barrel without dead corner, easy to discharge and clean with no cross contamination, conforming to the requirement of GMP.
|
Model |
HD-300 | HD-500 | HD-1000A | HDA-1500A | HDA-2000A | |
| Volume of mixing barrel (L) | 300 | 500 | 1000 |
1500 |
2000 | |
| Max charge volume (L) | 240 | 400 | 800 | 1200 | 1600 | |
| Max charge weight (kg) | 150 | 250 | 500 | 750 | 1000 | |
| Main shaft speed (rpm) | 14 | 13 |
12 |
10 |
10 | |
| Motor power (kw) | 1.5 |
2.2 |
4 | 5.5 | 7.5 | |
| Weight of whole machine (kg) | 600 | 750 | 1200 | 1650 | 200 | |
|
Overall dimension (L x W x H)(mm) |
1850x1280x1980 | 2200x1530x2220 | 2800x2000x2820 | 2980x2330x3070 | 3300x2550x3280 | |
| Model | HF-3000A | HF-4000A | HF-5000A | HF-6000A | HF-7000A | HF-8000A |
| Volume of mixing barrel (L) | 3000 |
4000 |
5000 |
6000 |
7000 |
8000 |
| Max charge volume (L) | 2400 | 3200 | 4000 | 4800 | 5600 | 6400 |
| Max charge weight (kg) | 1500 | 2000 | 2500 |
3000 |
3500 |
4000 |
| Main shaft speed (rpm) | 8 | 8 |
8 |
6 | 6 | 6 |
| Motor power (kw) | 11 | 11 | 11 | 15 | 15 | 15 |
| Weight of whole machine (kg) | 3000 | 3500 | 4000 | 5000 | 5500 | 6000 |
|
Overall dimension (L x W x H)(mm) |
3800x3000x3800 | 4050x3100x3920 | 4400x3500x4300 | 4500x3650x4650 | 4800x3900x4750 |
5000x4100x4900 |
