HFD Mixing machine
HFD Series Bin Blender ( Mixing machine ) is ideal for powder and granules mixing applications in pharmaceutical industry
mixing machines manufacturers
Usage

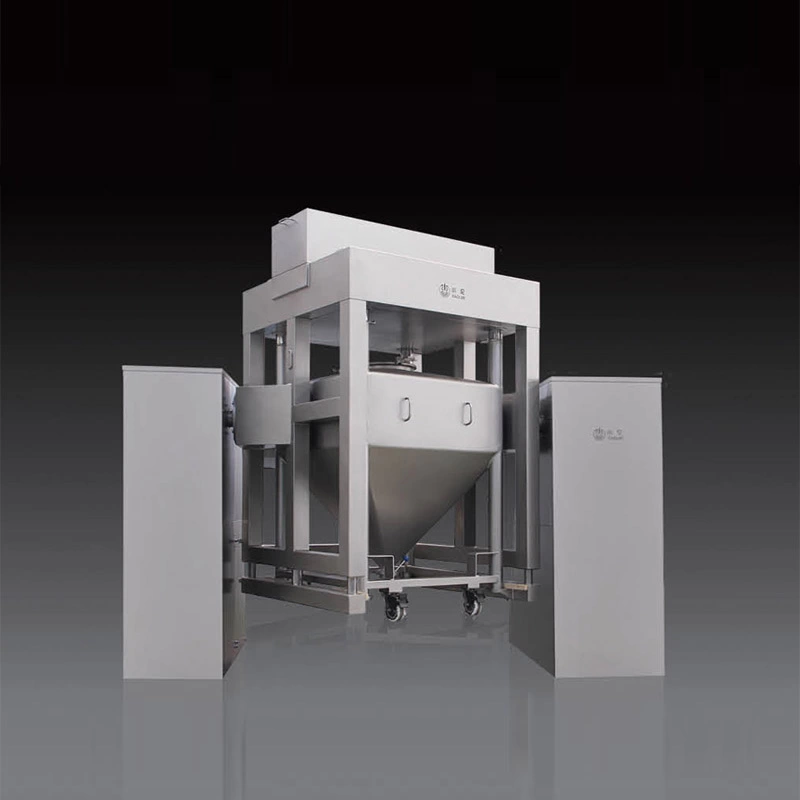

HFD Series Bin Blender (hereinafter called "this machine" ) is ideal for powder and granules mixing applications in pharmaceutical industry with high mixing efficiency and without cross contamination and dust.Thus, the machine can satisfy strict batch control and comply entirely with GMP requirements for medicine production.

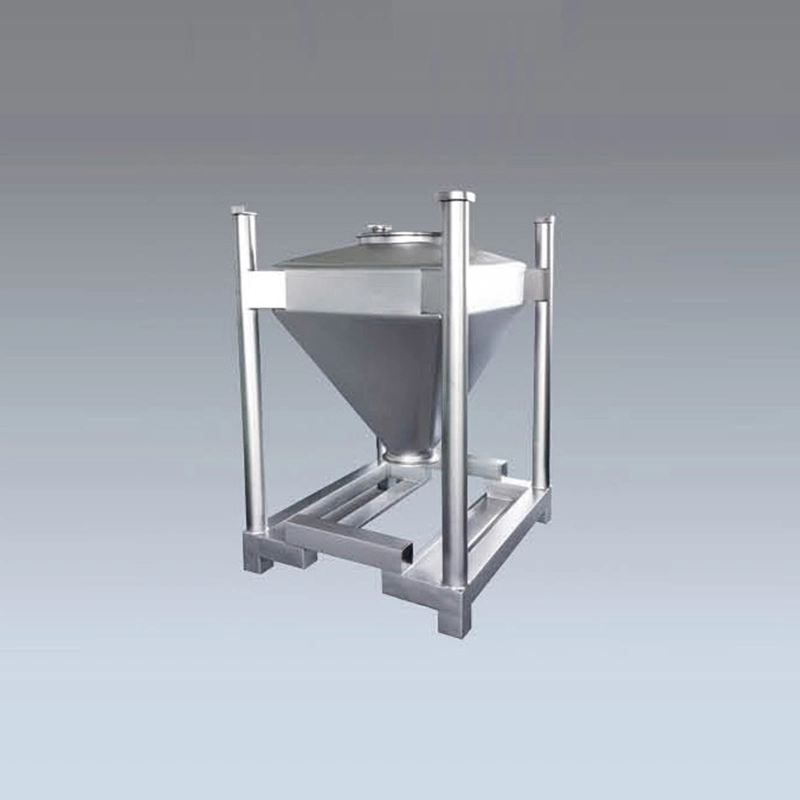

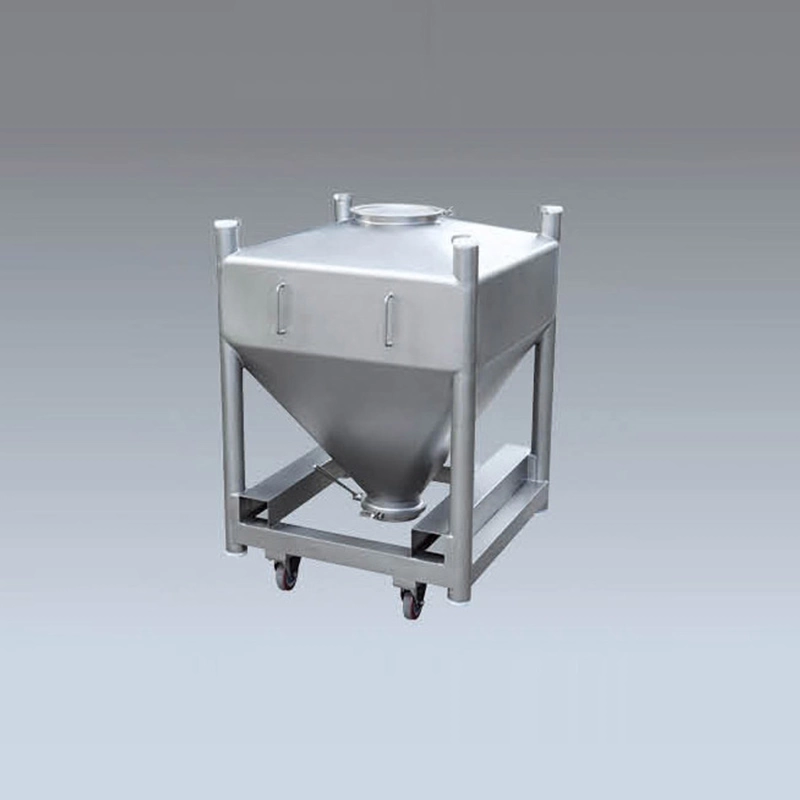

This machine can catch several kinds and different sizes of bins, which lifting, clamping, mixing,descending and clamp loosing full automatically. One main machine can be configured with various bin specifications, thus it's the ideal blender for general mixing in pharmaceutical plant, meanwhile, widely used in chemical, light and food industries, etc.
Features
1. This machine is novel in design and has compact structure and nice appearance. The evenness of mixing achieves above 99% and the volume charge coefficient reaches 0.8.
2. Low rotating height='auto' rea, smooth running, reliable performance and easy operation,
3. Mirror polish for the inner and outer surfaces of the bin without dead comer, easy to unload and clean with no cross contamination, which conforms to the requirement of GMP..
4. The system controlled by PLC, sensor of photoelectric position control, and drive system which composed of motors, thus, can. control the mixing time and unloading position. And when machine stopped,the discharge port will at the best position for unloading.
The locking clamp structure of loading cover bolt is easy for disassembly, cleaning and well sealing, and no leakage found in testing fill with water cover 80% of total volume.
6. Silicon soft connecting is used for connecting between inlet/outlet of the bin and other equipment,thereby, avoids flying dust.
7. The patented discharge butterfly valve is easy for disassembly, operation and cleaning with well sealing,and no leakage found in testing fill with water cover80% of total volume. It has been used on thousands of blenders and well received by customers,
8. Overload alarm, with isolating fence, alarm lamp and buzzer.
9. Function of data printing.
| Model | HFP-400 | HFP-800 | HFP-1000 | HFP-1500 | HFP-2000 |
| Max volume of hopper(L) | 400 | 800 | 1000 | 1500 | 2000 |
| Max Charge volume(L) | 320 | 640 | 800 | 1200 | 1600 |
| Max charge weight(kg) | 200 | 400 | 500 | 750 | 1000 |
|
Total power of motor(kw) |
4.75 | 7 | 8 | 10.5 | 11.5 |
| Front width='100%' rel x rotate depth x rotate height='auto' rea (mm) | 2630x2220x2550 | 2960x2557x3030 |
3150x3030x3350 |
3260x3200x3650 | 3500x3550x3950 |
| Weight (kg) | 1800 | 2600 | 3020 | 3750 | 4250 |
