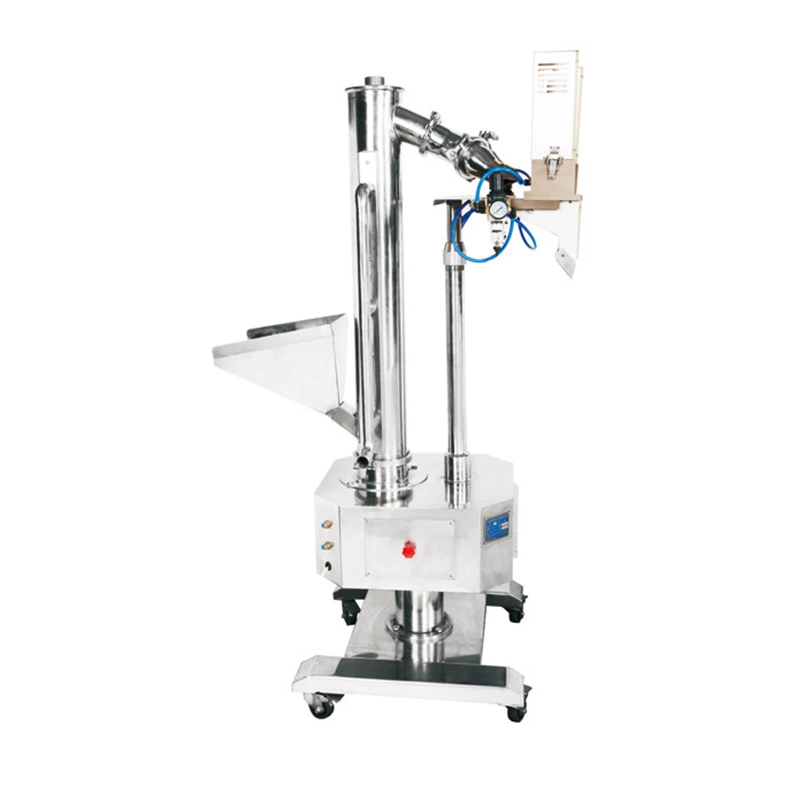

JFP Vertical Capsule Sorting Polisher
Capsule Sorting Polisher
JFP Vertical Capsule Sorting Polisher Capability and Characteristics

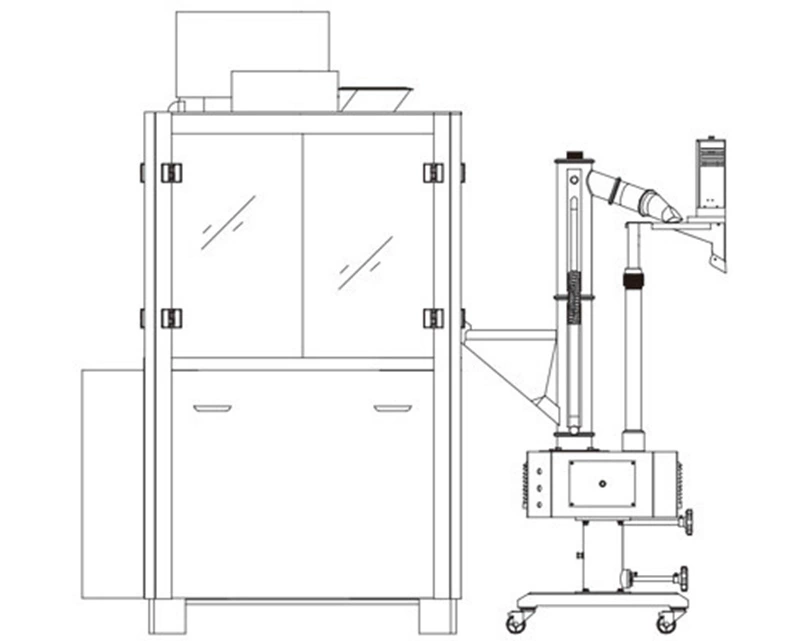

The machine has the multi-function of polishing, lifting and sorting capsules. Entrance of the machine can be connected to various types of capsule Filing machine’s outlet. Its outlet can also be connected with metal detector . Realization an even machine production mode of polishing , lifting , sorting , testing and monitoring.
Vertical Capsule Sorting Polisher Performance and features
1. With the capsule polishing function. Yield up to 8000Pcs/min.
2. Could connect with the product outlet of capsule filling machine.
3. Automatic select out low weight, empty capsule, fragment and separated capsules.
4. Use fast-loading connection structure, quick and easy to disassembly and installation
5. Brush removable , easy to clean machine , no dead ends , meets cGMP requirements.
Productivity
Vacuum flow
8000 Pcs/min
Power supply
220V 50HZ 1A
Power
180w
Compressed air pressure
<0.3Mpa
Compressed air flow
>270L/min
>1000L/min
Vacuum degree
>0.13mbar
Weight
138KG
Overall dimensions
682×600×1646 mm
