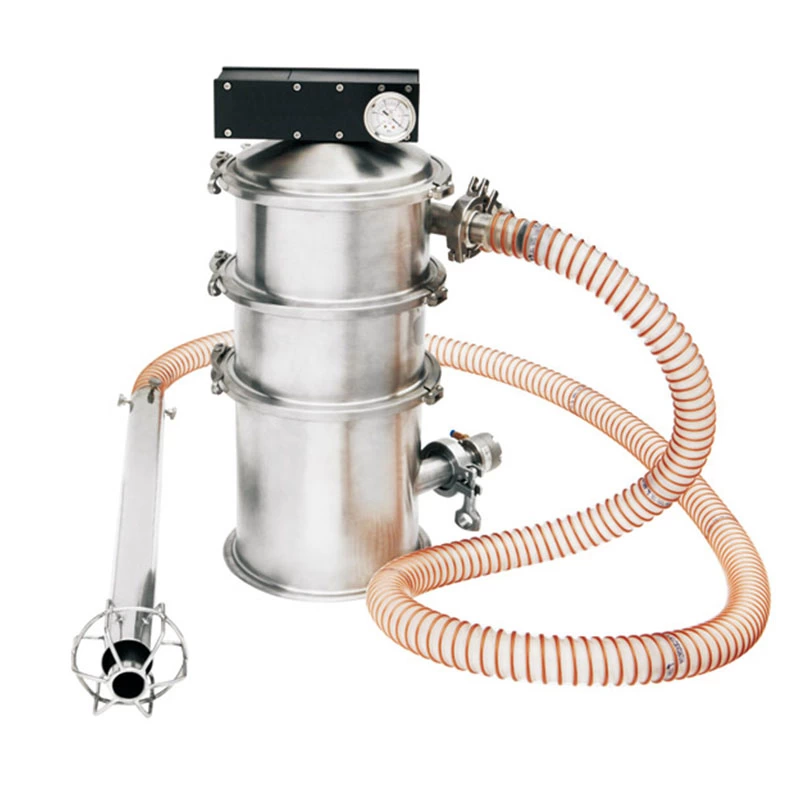

QVC series Automatic Vacuum Charging Machine
Usage & Features
Pneumatic Charging machine, achieve the delivery of materials by using high vacuum which generated from the vacuum generator from compressed air, this new device is help to avoid material lamination, with simple structure, easy to operate, low noisy, and comply with GMP standard. lt is the best device of Press machine, Capsule filling machine, blister packing machine and etc.
Model
QVC-1
QVC-2
QVC-3
QVC-4
Output
350Kg/h
700kg/h
1440kg/h
2880kg/h
Air consumption
180L/min
360L/min
720L/min
1440L/min
Power
5W
5W
5W
5W
Overall dimensions
Φ140×560
Φ213×720
Φ290×850
Φ420×1150
Weight
15kg
20kg
28kg
40kg
