Features

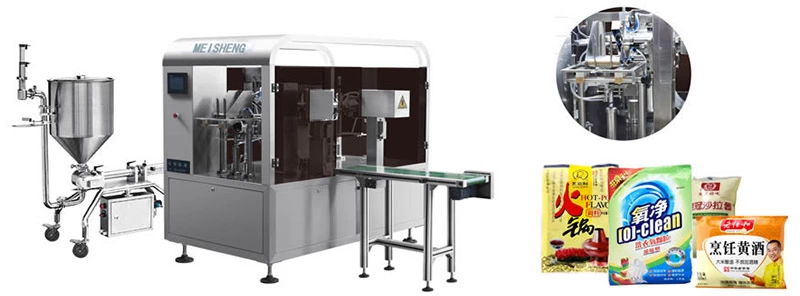

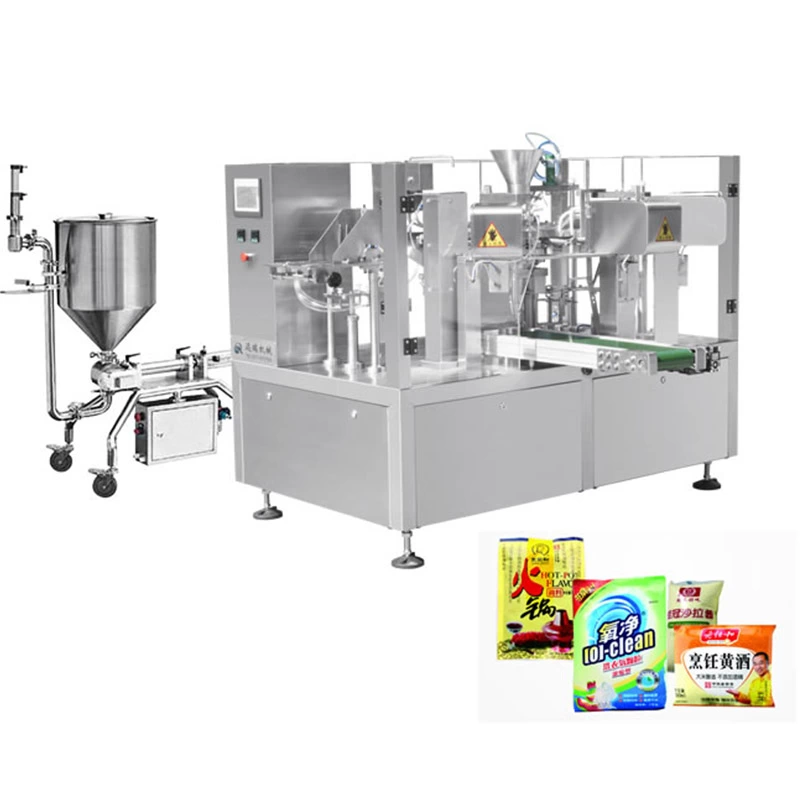

1. Liquid, sauce body measurement packaging system has a rotary packaging machine and liquid filling machine.
2. The use of high-quality accessories, to maintain long-term stability of the machine.
3. There is a more convenient waterproof system cleaning, color touch screen display, simple operation.
4. Perfect quality guarantee high speed and stable production 5
5. The use of prefabricated bags, the pattern is perfect, good sealing quality, low package material loss.
6. At a reasonable cost, innovation to solve a variety of product packaging problems.
1, on the bag
2, print production date
3, open the bag
4, filling 1
5, filling 2
6, exhaust
7, heat sealed
8, shaping and output
Model
MSZP8-250S
MSZP8-200
Packaging material
Free bag, bag, zipper pocket, four side bag, paper bag compound bag
Package size
width='100%' rel: 70-260mm width='100%' rel: 70-200mm
Fill range
5-1500g
Packaging speed
20-50 packs/min (the speed is determined by the product itself and the weight of the filling)
Metering average precision
≤ ± 1
Total power
2.6kw
Scope
peanut butter, jam, chili sauce, tomato sauce, bean paste, detergent, rice wine, rice vinegar, juice etc.
Metering equipment
liquid (sauce body) meter
Workflow
