Applications
Is suitable for medicine bottle (round bottle, flat bottle), eyedropper bottle and similar product.
Machine Details Packaging

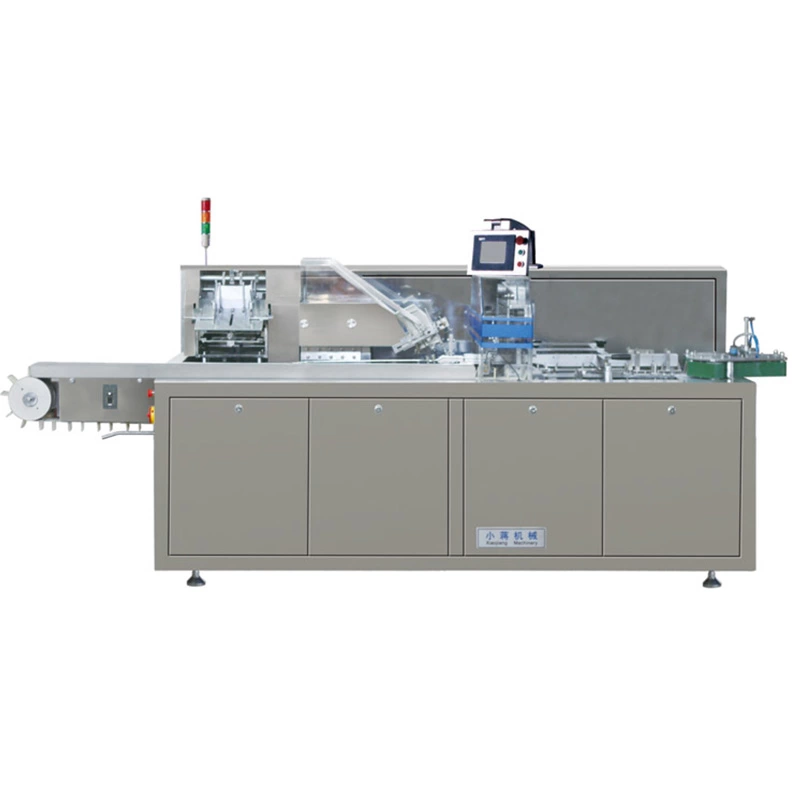

Machine Detail
(80-300) x (70~210)
(70~210) x (20~40)
Capacity (cycle/min)
30~100 Cartons/min
Finished product rate (mm)
≥99%
Wasteful product rejection rate (mm)
100%
Packing material
Box dimension (LxWxH)
(65~125 )x (40~78) x (12~65)
Cardboard of box required
250~300
Leaflet dimension: (LxW): Folded
Leaflet paper required
50~70
Clean compressed air (pressure)
0.6~0.8Mpa
Air consumption
≥0.3m³/min
Power
AC220V 50Hz 1Kw
Overall dimension (L x W x H)
2700 x 1270 x 1670 mm
Net weight
1300 kg
