Usage
Cartoning machine is new model developing base on integrated domestic and foreign advance technology. It is high technology product incorporates pneumatic-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running.
Cartoning machine is suitable for automatic feeding bottle into carton. On line bottle unscramble and feeding, leaflet fold(1-4folds) and feeding,leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue. Automatically reject lacking of leaflet or product and finished product out.
Applications

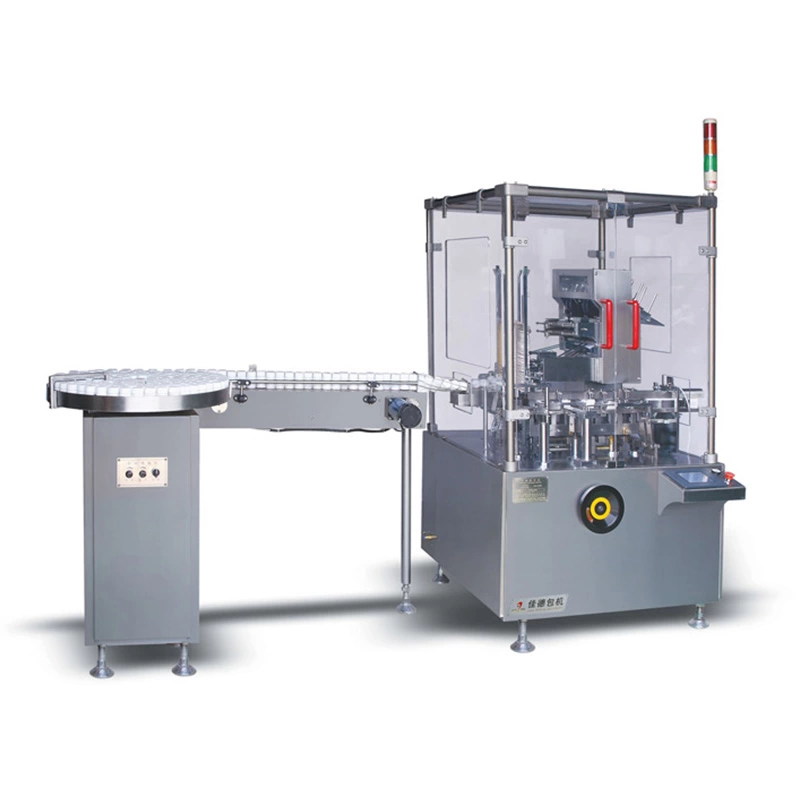

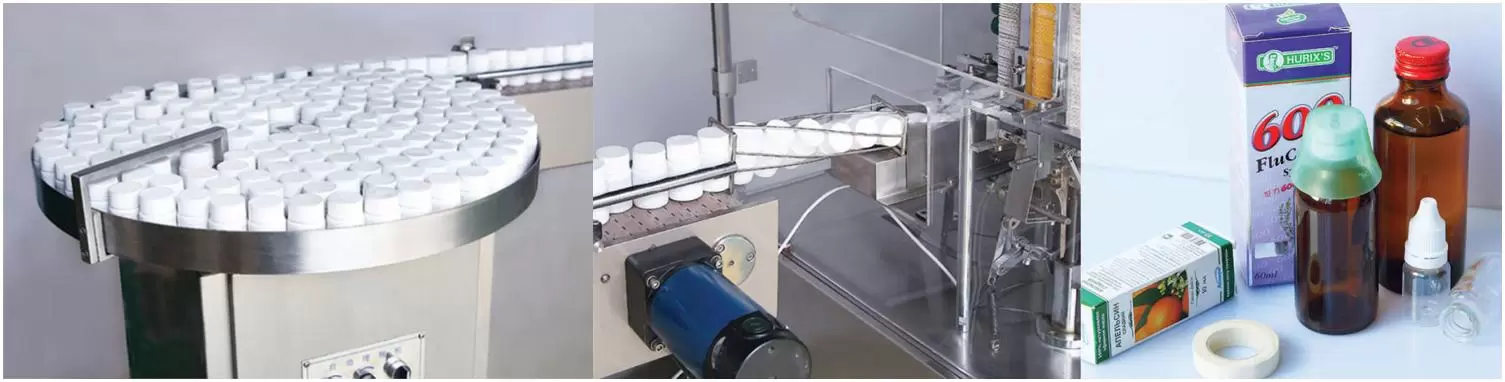

ZHV-120 Bottle Cartoning machine is suitable for medicine bottle (round bottle, flat bottle), eyedropper bottle and similar product.
Features
International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.I I Adopt human-machine operation system.
Automatically stop when machine is overload.
Automatically reject lacking of package product and leaflet.
Automatically display trouble, Alarm and count finished products.
Stable performance,operation is easy.
Power supply
Main technical parameters
JDZ-120P (Vertical)
Encasing speed
30-120 (Cartons/min)
Carton
Quality requirement
250-350g/㎡ Base on carton size
Dimension range (L x W x H)
(65-125)mm x(30-85)mm x (12-50)mm
Leaflet
Quality requirement
60-70 g/㎡
Unfolded leaflet specification
(80-250)mm x (90-170)mm
Fold range
1-4 x (Fold)
Compressed air
Working pressure
≥0.6Mpa
Air consumption
120-160 L/min
220V 50hz
Motor power
0.75Kw
Machine dimension (L x W x H)
2700mm x 1140mm x 1800mm
Machine weight
1200kg
