1.GZB-260 High speed flow packing machine

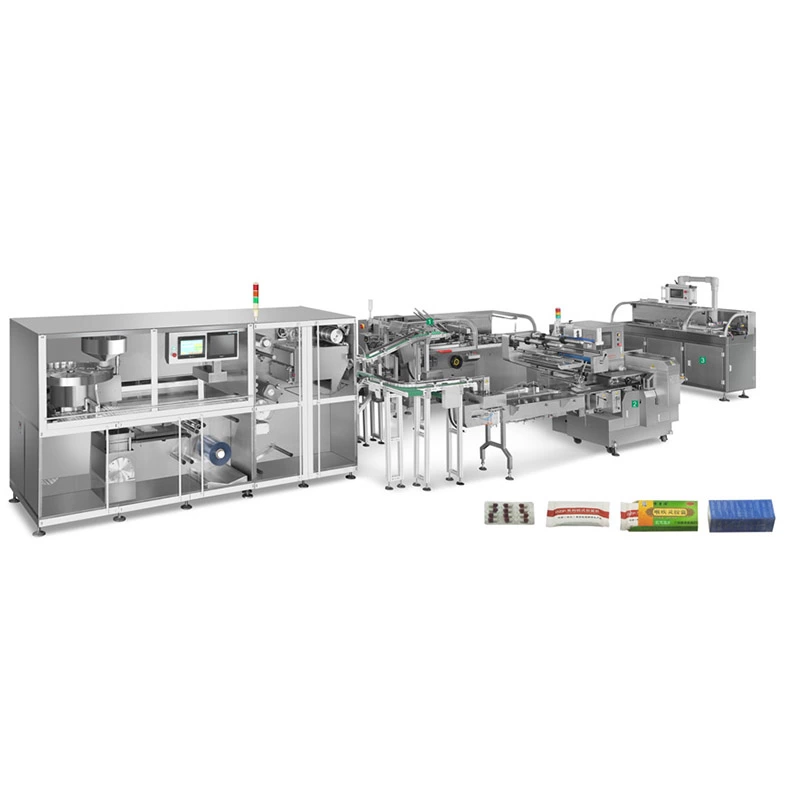

The reciprocating blade can make better sealing effect and achieve high speed running. It wide used in automatic production line between the blister packing machine and cartooning machine.
Main technical parameter
|
Model |
|
| Packing Capacity | 30-260PACKS/MIN |
| Film Width | MAX.350mm |
| Packing Size | L(70-260) X W(25-125)X H(5-50)mm |
| Poduct Height | 10-50MM |
| Film Outer Diameter | MAX.400mm |
| Air Supply | ≥0.2Mpa |
| Power Supply | 220V 50/60HZ, 2.4KW |
| Machine Weight | 1160KG |
| Machine Demenion | 4200*960*1520 |
2.Automatic Continuous Motion Cartoning Machine
High Speed Automatic Cartoning Machine is suitable for cartoning medicine plates, medicine bottles and similar items, and can be continuously operated and cartoned. With high packaging efficiency and high quality, it is a high-tech product with integrated motor. It can automatically complete manual folding, carton opening, block boxing, batch number printing, and sealing. It adopts high frequency speed regulation and PLC control with man-machine interface. The photoelectric monitors the actions of each part, and if there is an abnormality during operation, it can automatically stop and display the reason for troubleshooting in time. It can be used alone or connected with blister packaging machine and other equipment to form a production line.
| Main Technical Parameters : Continuous Motion Cartoner Machine | ||
| Encasing speed | 450 boxes /min | |
| Box | Quality requirement | 250-350gsm【Base on carton size】 |
| Dimension range(L×W×H) | (70-180)mm x (35-80)mm × (14-50)mm | |
| Leaflet | Quality requirement | 60-70gsm |
| Unfolded leaflet specification | (80-250mm×(90-170)mm | |
| Fold range | 【1-4】Fold | |
| Compressed air | Working pressure | ≥0.6mpa |
| Air consumption | 220-240L/min | |
| Power supply | 380V 50HZ/60HZ | |
|
Main motor power |
4.5kw | |
| Machine dimension | (L×W×H) 480mm ×1800mm ×2000mm | |
| Machine weight | 5500kg | |
3.Automatic carton bundling(wrapping) machine
High speed automatic bundling machine is suite for cartons group pack as the final step before case packing & Palletizer.
| Bundling Speed | 15-25 PACKS/MIN |
| Bundling size | Max L*W*H: (240*150*300mm); Min L*W*H: (50*60*90mm) |
| Packing size | PE film(30-80mm, thickness 30-80mm) |
| Power supply | 220v 50Hz |
| Total power | 1.5Kw |
| Air supply | 0.6-0.8Mpa |
| Weight | 500Kg |
| Transportation size | 1300*250*800mm Conveyor link with cartoning machine |
| Main machine | 1100*800*1600mm |
