Usage

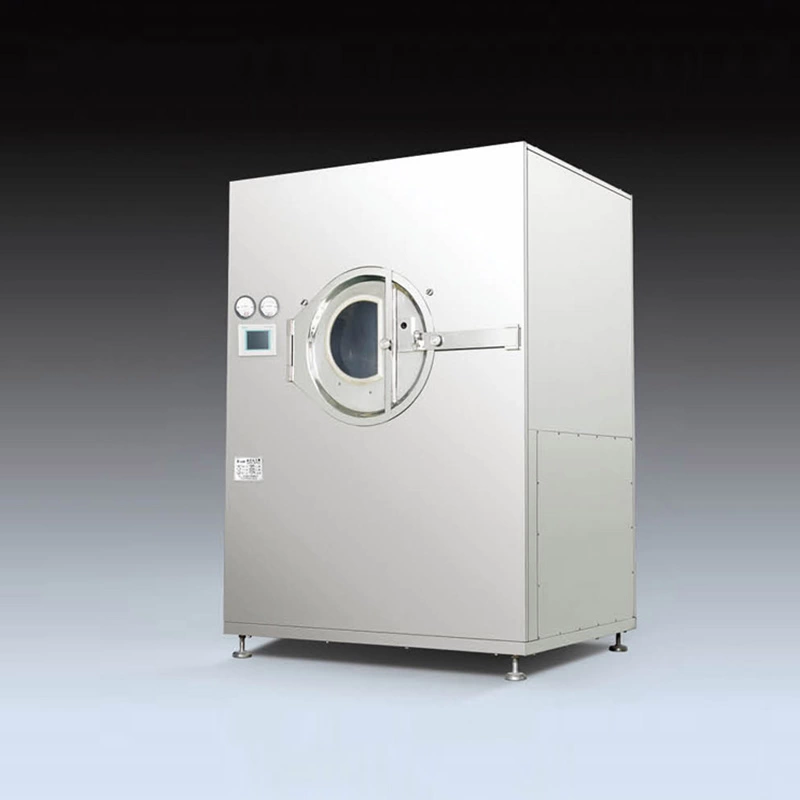

The BGW - C Series high-effiency solid pan coater is a high-effiency, energy-saving, safe, clean, computer controlled and mechatronics equipment which is used for coating sugar, organic film, water soluble film, slow and controlled release film on traditional Chinese and Western tablets and pills (including micro- ills, small pills, water-bindered ills, drip pills and granulated pills)and: it also conforms to the requirement of GMP. It is a high- -tech product first successfully developed in China by this factory.
Features
1. It has all the features of BGB~C Series high-fiency coating machine.
2. The coating drum is with a poreless structure. Above 0.6mm tablet coating, vеrѕаtіlе in use.
3. It has a specially structured air distributing system.The air intake and exhaust pipes can be interchanged according to the needs

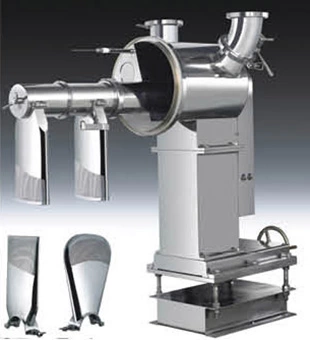

4. Different materials are equipped with different air paddles. The paddles can be embedded into or taken off from the material according to technology needs.
5. It has a special cleaning and trainage unit.
Working Principle

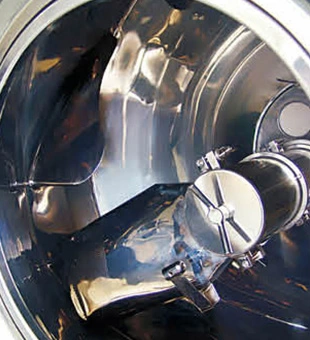

The tablet cores(micro-pills, small pills or plain tablets)make continuous and complicated orbital motion within a closed rotating drum under the action of a streamline guide plate. Controlled by computer and according to the optimum technological parameters, they are automatically sprayed with coating medium while hot air under a negative pressure is led in from one side of an air distributing pipe in the center of the drum, then the clean hot air penetrates through the tablet core layers and is discharged after being collected to the other side of the air distributing pipe by a pore duckbill- -shaped(or oval) air paddle embedded in the tablet core layers,so that the coating medium sprayed on the surface of tablet cores will dry rapidly and evenly, thereby forming a layer of solid, compact, neat and smooth surface film.
Model
BGW-350C
BGW-150C
BGW-75C
BGW-10C
Working capacity (kg/batch based on bulk density of 1)
350
150
75
10
Speed-adjusting range of coating drum (rpm)
2-11
3-15
4-19
6-30
Motor power of main machine (KW)
4.0
2.2
1.5
0.55
Regulating range of hot air temperature (℃)
Normal temperature ~80 ℃
Filtration accuracy of hot air (μm)
0.5μm (100,000 grade)
Motor power of hot air machine (KW)
2.2
1.1
1.1
0.75
Motor power of exhaust air machine (KW)
7.5
5.5
3
2.2
Motor power of vibration dust-cleaning device (KW)
0.37
0.37
0.37
0.37
Motor power of peristaltic pump (KW)
0.18
0.18
0.18
0.18
Overall dimension of main machine (mm)
1740x2500x2270
1450x2200x2100
1250x1900x1900
1000x1500x1600
Weight of main machine (Kg)
2000
1100
700
560
